Product number:
BC0290008
Manufacturer:
Carpoint
Description

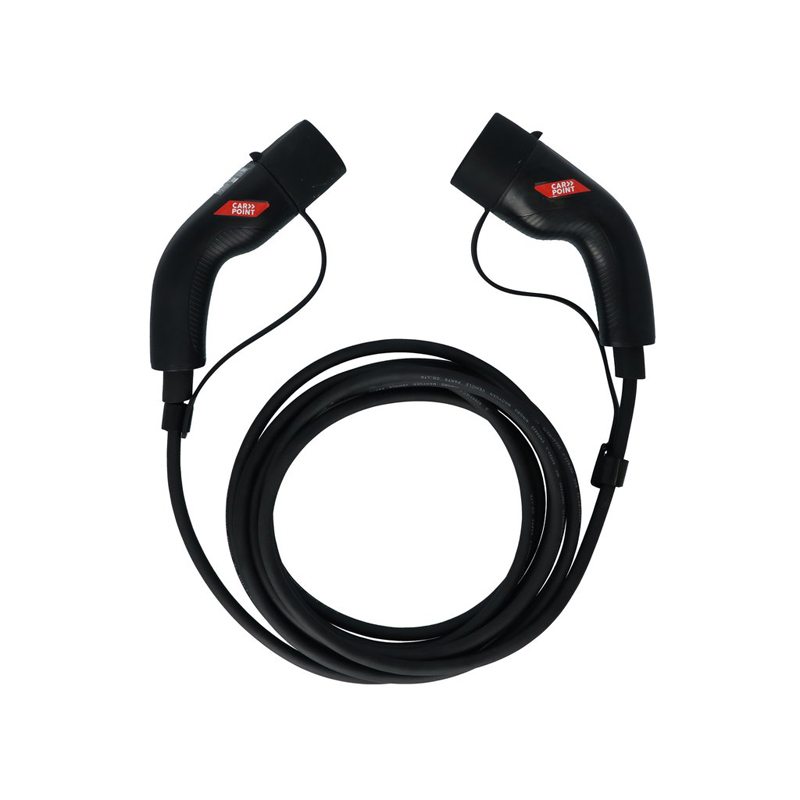

Product information "Carpoint Electric Vehicle Charging Cable Type2>2 32A 1-Phase 6-meter"
The car market is in a state of flux. With increasingly stringent environmental laws, many car drivers are opting for an electric car. The number of public and fast charging stations has also increased dramatically in recent years. This increase ensures that the demand for charging cables rises.
Carpoint offers a wide range of charging cables for electric vehicles which are tested and certified and meet all electrical safety requirements. Carpoint products are developed with sustainability in mind. The robust construction ensures that the products can be used on a daily basis.
Carpoint 1 Phase charging cable for all electric vehicles with a type 2 connection. With 32 Amp capacity, it charges safely via 3 phases. Plug charge side type 2 male and plug charge side car type 2 female both plugs comply with the IEC 62196-2 international standard. Both plugs are equipped with a protective cap.
The Carpoint charging cables are designed according to the IP55 classification, making the cable safe to use outdoors in all weather conditions. The total length of 6 meter offers maximum flexibility. Attention: be sure the maximum cable current and phases match with the highest values of your charger and are supported by your car.
Specifications:
Charging cable electric vehicle type 2 to type 2
32A
1 phase
220-250VAC ± 10%
Length 6 meter
Fits all EV cars with type 2 connector
Charger side plug: type 2 male (IEC 62196-2) with protective cap
Car charging side plug: type 2 female (IEC 62196-2) with protective cap
IP55 protection factor
Insulation resistance >1000MOhm
Voltage resistance 2000V
Contact resistance < 0,5 mOhm
Pin temperature rise <50K
Lifetime >50.000 times
Vibration resistance meets the requirements of JDQ53.3
Cable type 3*6mm2 + 2*0.5mm2
Operating temperature -40°C ~ 50°C
Carpoint offers a wide range of charging cables for electric vehicles which are tested and certified and meet all electrical safety requirements. Carpoint products are developed with sustainability in mind. The robust construction ensures that the products can be used on a daily basis.
Carpoint 1 Phase charging cable for all electric vehicles with a type 2 connection. With 32 Amp capacity, it charges safely via 3 phases. Plug charge side type 2 male and plug charge side car type 2 female both plugs comply with the IEC 62196-2 international standard. Both plugs are equipped with a protective cap.
The Carpoint charging cables are designed according to the IP55 classification, making the cable safe to use outdoors in all weather conditions. The total length of 6 meter offers maximum flexibility. Attention: be sure the maximum cable current and phases match with the highest values of your charger and are supported by your car.
Specifications:
Charging cable electric vehicle type 2 to type 2
32A
1 phase
220-250VAC ± 10%
Length 6 meter
Fits all EV cars with type 2 connector
Charger side plug: type 2 male (IEC 62196-2) with protective cap
Car charging side plug: type 2 female (IEC 62196-2) with protective cap
IP55 protection factor
Insulation resistance >1000MOhm
Voltage resistance 2000V
Contact resistance < 0,5 mOhm
Pin temperature rise <50K
Lifetime >50.000 times
Vibration resistance meets the requirements of JDQ53.3
Cable type 3*6mm2 + 2*0.5mm2
Operating temperature -40°C ~ 50°C
Properties
| Colors: | Black |
|---|---|
| Materials: | Plastic |
